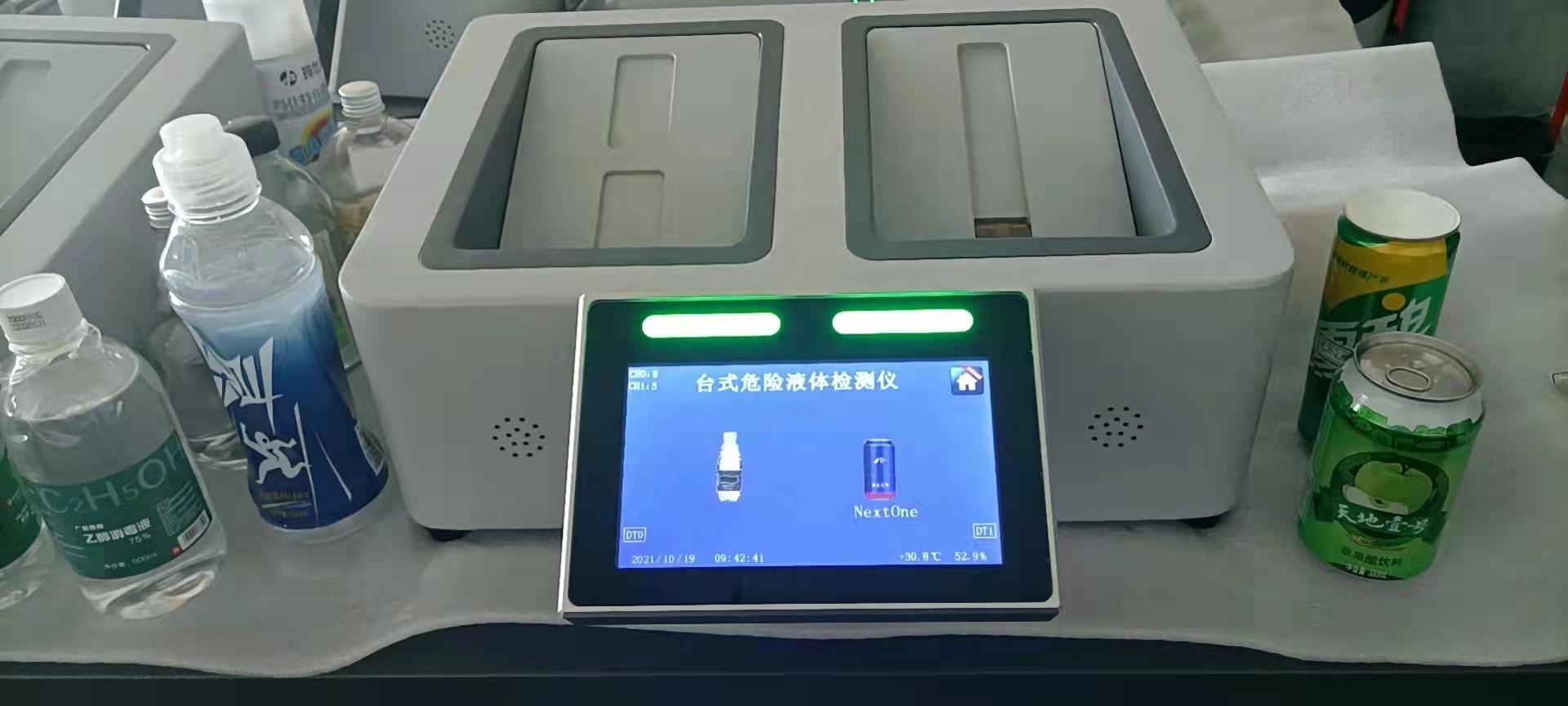

Liquid detector

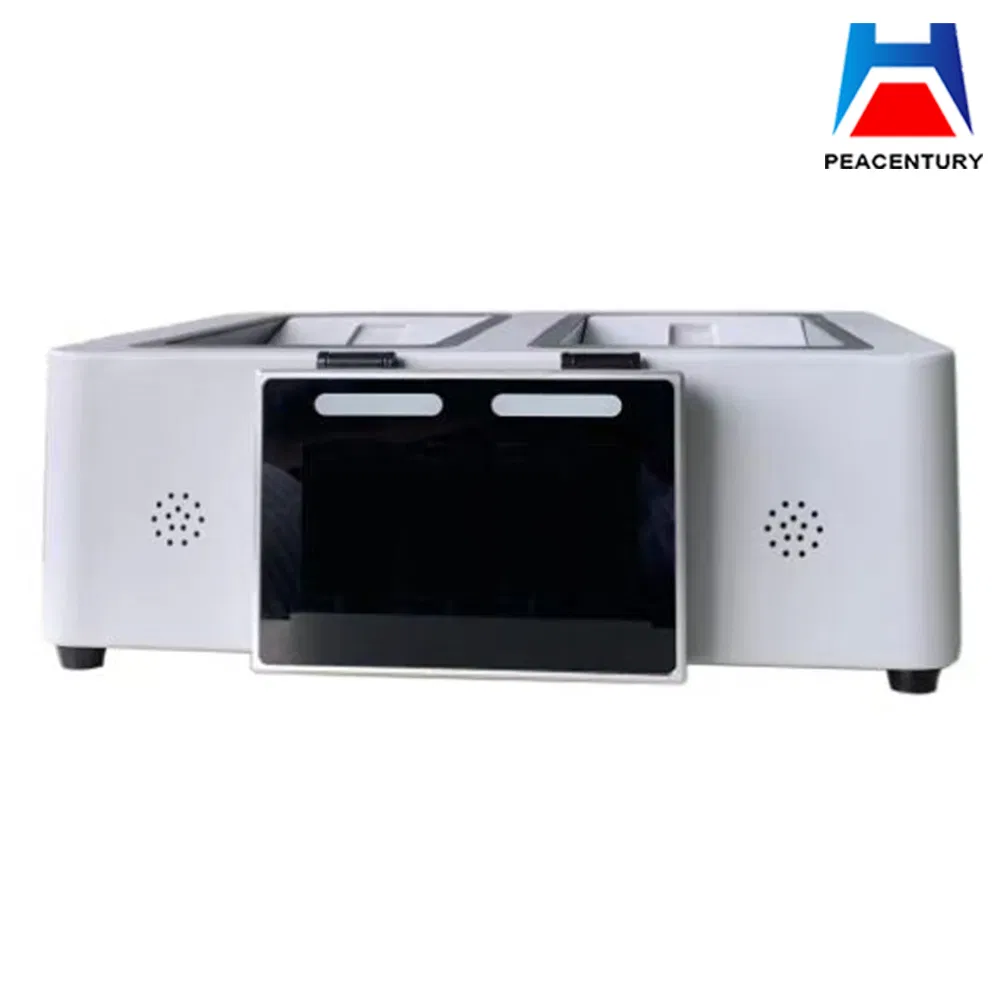

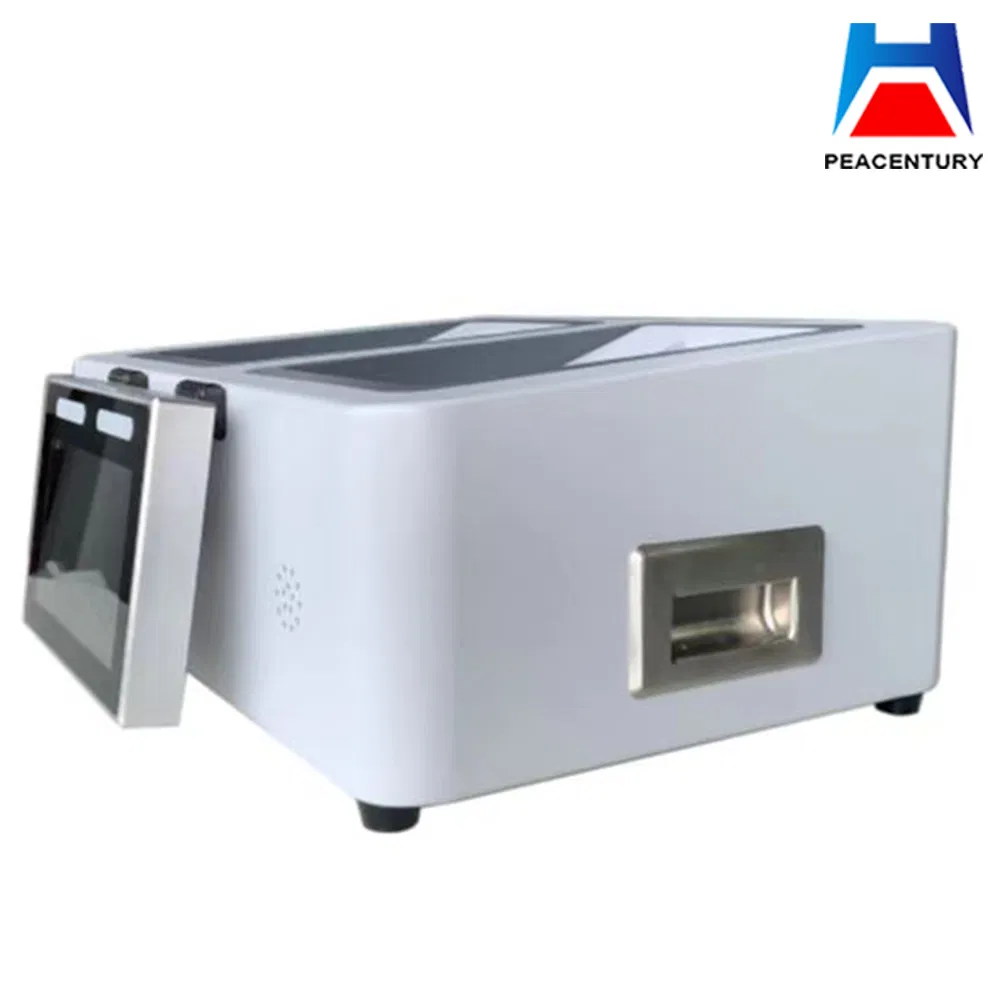

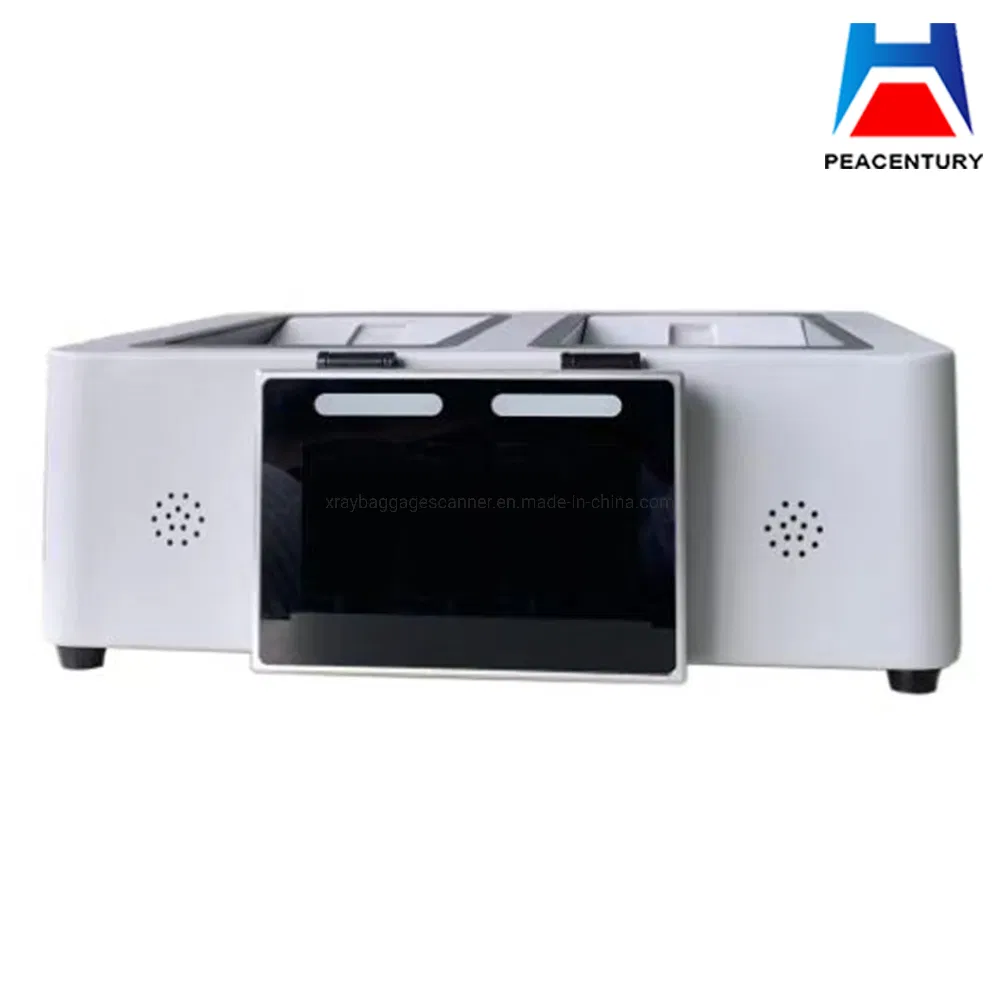

Dangerous liquid detector Using ultra-wideband pulsed microwave reflection method

1. Detect purpose: Flammable liquid in the sealed containers

2. Containers materials: plastic/glass/metal/ceramic/paper (no aluminum foil coating)

3. Detect volume: Plastic/glass containers 100-5000ml, Metal containers, 100-2000ml

4. Liquids can be detected container: 60mm height 400mm or less, or less30 mm in diameter 200 mm or less or less

5. Boot time: 3.5 seconds

6. Self checking time: 2 seconds

7. Detection speed: Plastic/glass container for 1-2 seconds, Metal containers for 2-5 seconds

8. The minimum detectable amount: 100ml

9. Large storage: not less than 100000 records

Technical indicators
Display mode: high-definition LCD touch screen display, tempered glass panel, the surface is waterproof and dustproof.
High sensitivity: able to detect low-concentration alcohol (such as 52-degree liquor) and gelatinous liquids
Applicable liquid packaging materials: able to detect different materials such as plastic, glass and ceramic packaging liquids
Detectable dangerous liquid categories: flammable, explosive, corrosive dangerous liquids
Detectable volume size: ceramic jars, glass bottles, PET plastic bottles 30mm≤diameter≤200mm;

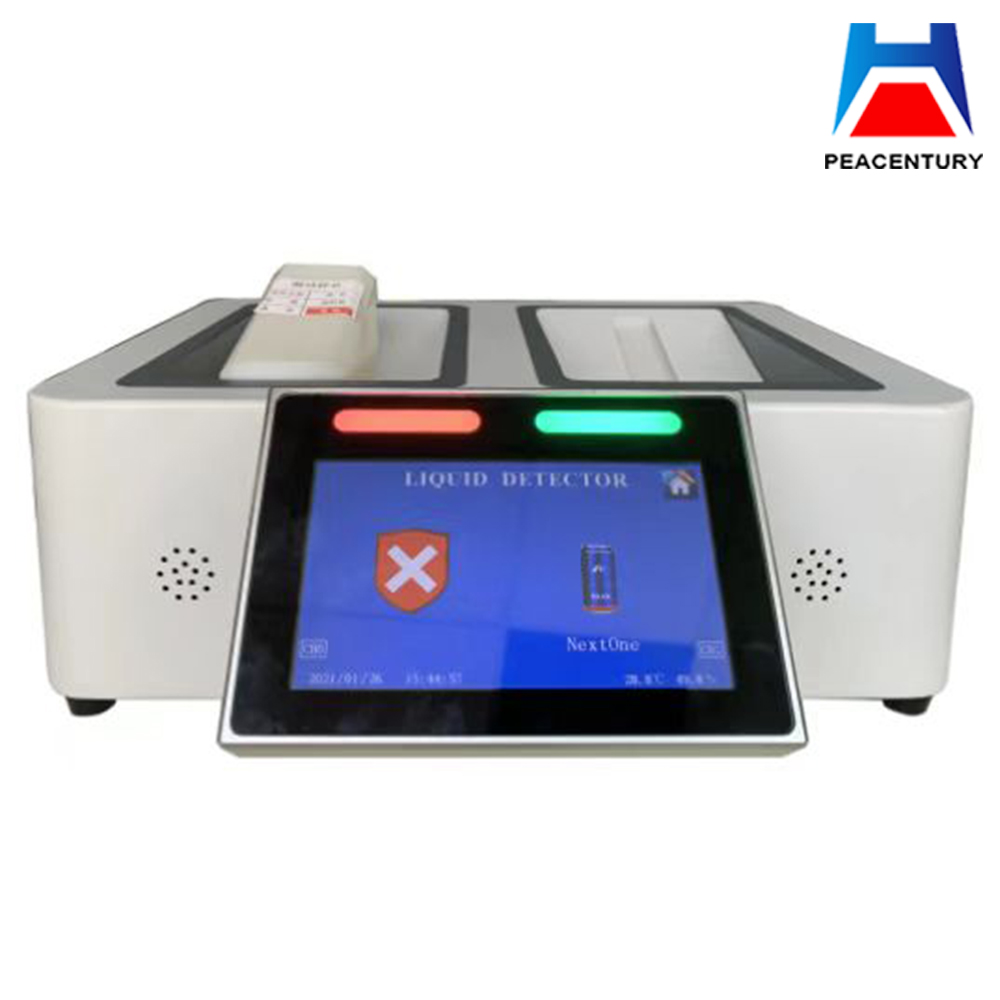

Dangerous liquid display: red hazard alarm icon, accompanied by a long buzzer, to remind the operator
Safety liquid display: green safety icon with short beep alarm
Boot time: 1.0 seconds, no need to warm up
Self-calibration function: It has a self-calibration function, and the self-calibration time is 1.0 seconds.
Automatic counting function: can automatically count the number of detected objects.
Authentication function: Has an authentication function.
Human-machine interface inspection: The device's human-machine interface provides a full Chinese interface and comes with a light source. Equipment users can pass the touch screen equipment parameters according to the working environment.
Detection time: insulated container (plastic, glass, ceramic container): 1 second
Alarm mode: sound / light alarm / LCD graphic display, turn off the alarm sound separately.
Basic parameters
