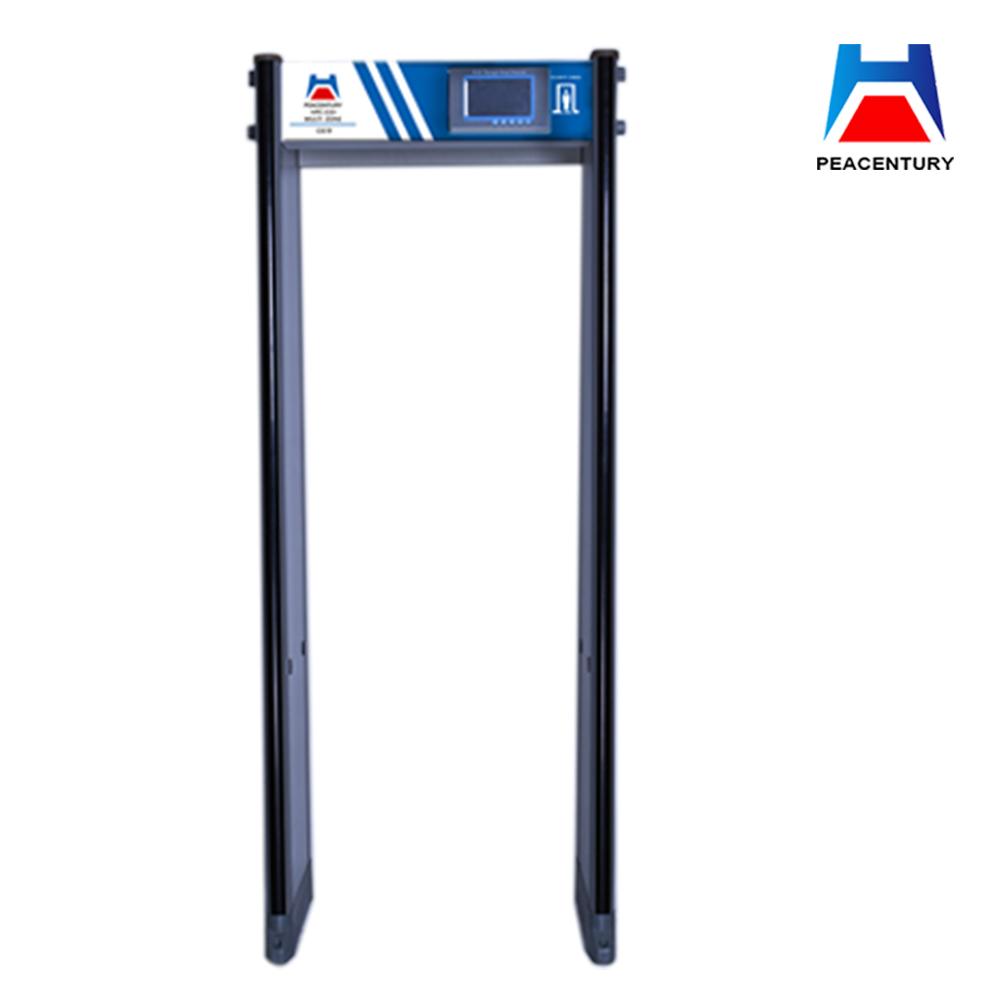

Walk Through Metal Detector Model: HPC-E45
分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
Model: HPC-E45
+86 188 2346 4025
产品详情
Basic Info.
Model NO.
HPC-E45
Certification
CE, RoHS;FCC
Customized
OEM / ODM
Application
Museum, Prison, Pier, Station, Hotel; Airport;Office
Name
Walk Through Metal Detector
Model
HPC-E45
Sensitivity
0-300
Power Supply
AC85V-264V
Standard External Size
2200mm(H)X800mm(W)X580mm(D)
Standard Internal Size
2010mm(H)X700mm(W)X500mm(D)
Transport Package
Cartons
Specification
62KG/unit 0.41CBM/unit
Trademark
PEACENTURY
Origin
China (Mainland)
HS Code
8543709100
Production Capacity
2000PCS/Week
Packaging & Delivery
Package Size
2310.00cm * 55.00cm * 19.00cm
Package Gross Weight
58.000kg
Product Description
Safety Security and Peace of Mind for any size venue walk through metal detector
Characteristic & Function
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable:Each zone has 100 sensitivity level
Sound & LED alarm:Both Side LED indicator ,
Easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly:Designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body:Is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece:One yuan Coin, omnidirectional detection

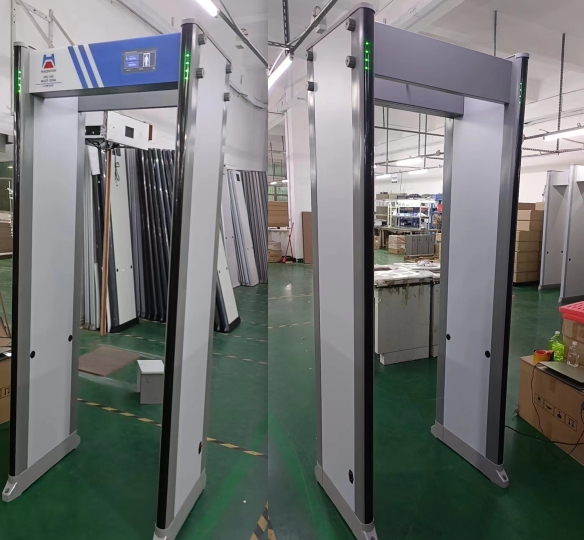

Our workshop showOur Certificates:
Our product line as below:
X ray Baggage Scanner
Walk Through Metal Detector
Under Vehicle Surveillance System
Hand Held Metal Detector
Explosives Trace Detection
Product Parameters

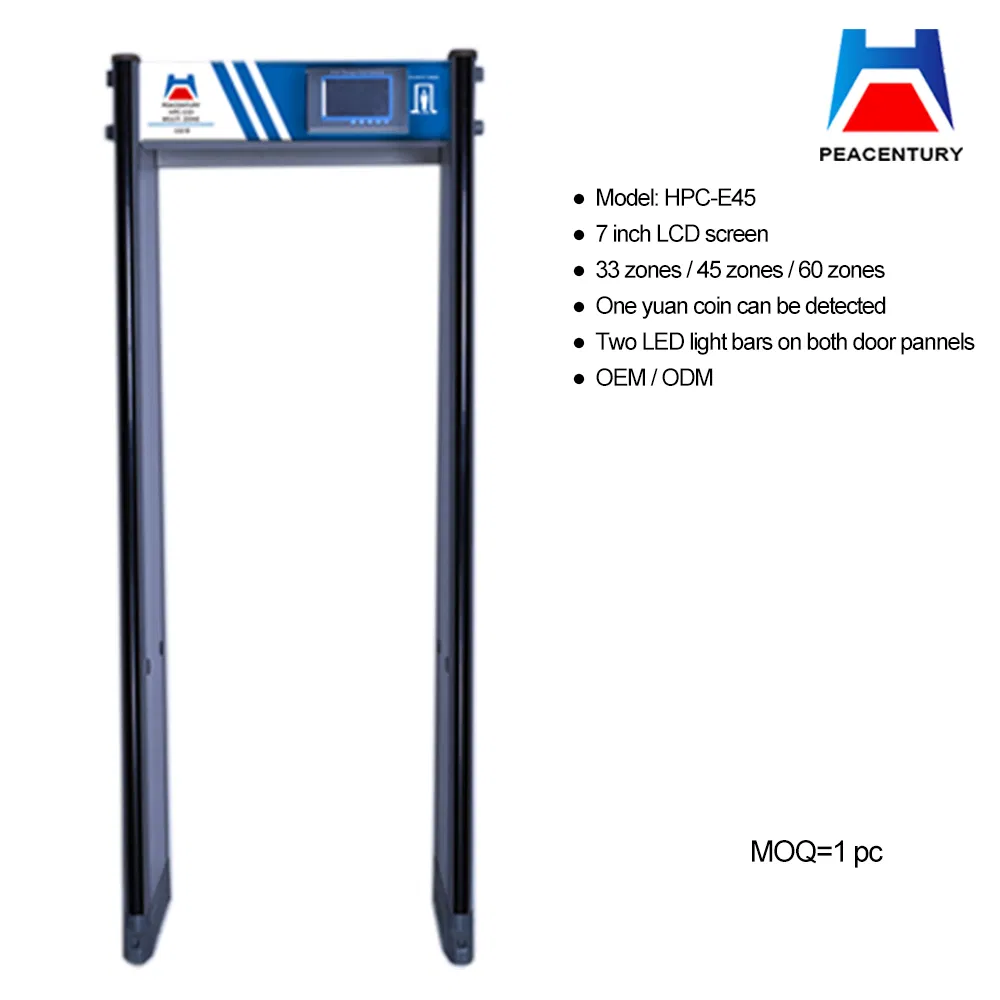

Walk-through metal detector Specification:
| Weather-proof Level: | IP65 |
| Technology: | DSP and module construction |
| Electric current: | AC215V~230V 50/60Hz |
| Power: | 12 W |
| Detection zones | 33 zones/45zones/60zones |
| Operation way | keypad and remote control |

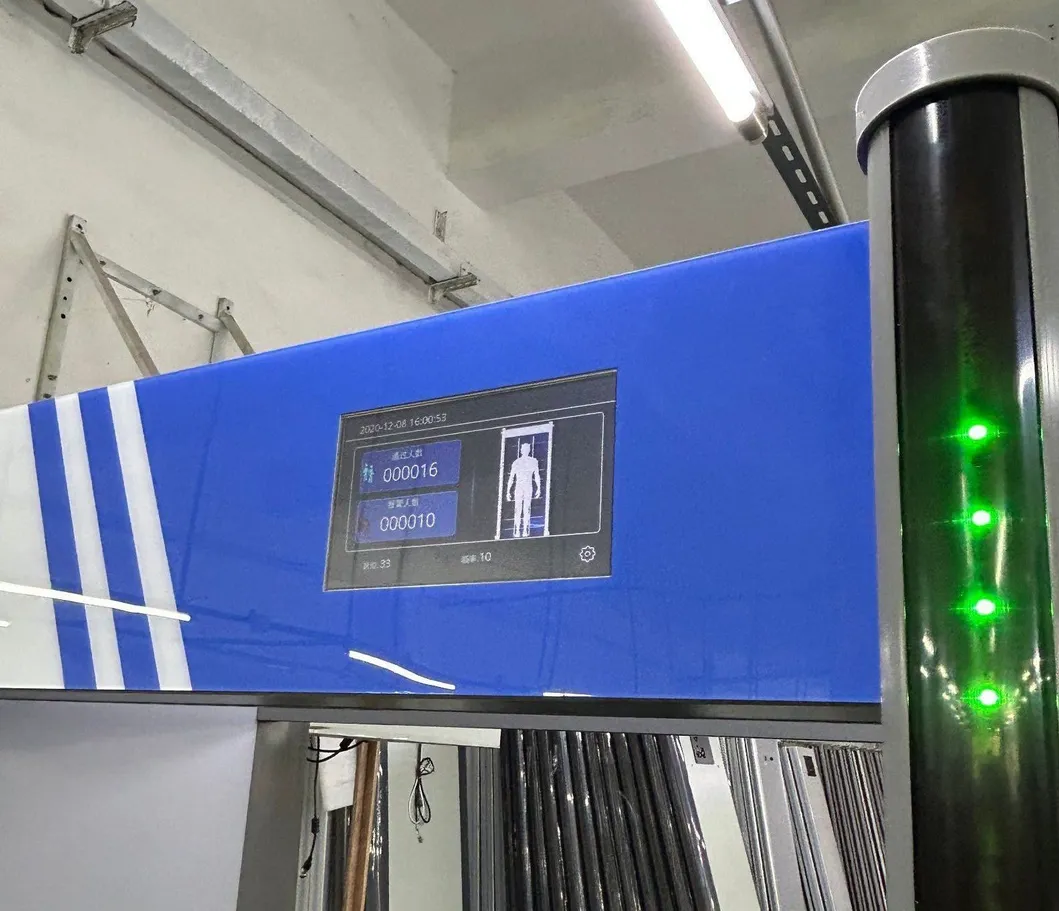

| Screen | 7inch LCD screen,Audible and visible alarm, English display and zone display |
| LIght bar | on door frame |
| Work environment: | -20 degree~+45 degree |
| Gross Weight: | 70kgs |
| Inner frame: | 2000mm (H) X 760mm (W) X 600mm (H) |
| Outer frame: | 2220mm (H) x 880mm (W) X 600mm (H) |
| Operation way: | remote control and keyboard control |
| Two LED light bars on both door panels: | gives alarm corresponding to the height or human body. |
| Sensitivity adjustable | from Level 0 to 300 for each program, separate vertical zones with independent adjustable sensitivity from 0-300
|
| Anti-shock: | Shock proof to avoid false alarm |
| Intelligent traffic and alarm counters | calculate traffic flow and resultant alarms Tamper-Proof: operate program is protected by password. |
| Advantages function: |
|
Characteristic & Function
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable:Each zone has 100 sensitivity level
Sound & LED alarm:Both Side LED indicator ,
Easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly:Designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body:Is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece:One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
Our workshop showHarmless to human body with heart peacemaker,pregnant women,etc.
Screening with a metal detector involves walking through a scanner, which uses low-frequency electromagnetic waves to scan for metal weapons and other threats. Metal detector scanners do not use X-ray technology, so they don't emit radiation. The levels of electromagnetic waves emitted by these machines are so minuscule they are considered safe for everyone. The chances of a metal detector harming you or your unborn child are slim to none. Electromagnetic waves are emitted by many devices you use on a daily basis, including your television, curling iron or anything else that uses electricity.
Our product line as below:
X ray Baggage Scanner
Walk Through Metal Detector
Under Vehicle Surveillance System
Hand Held Metal Detector
Explosives Trace Detection
