Model: HPC-H5
+86 188 2346 4025
产品详情

Basic Info.

Model NO.
HPC-H5
Certification
CE, ISO, RoHS; FCC
Customized
OEM /ODM
Application
Museum, Prison, Pier, Station, Hotel; Airport;Office
Model
Hpc-H5
Detect Zones
5zones
Original
China (Mainland)
Sensitivity
Adjustable From Level 0 to 100
Indicator
Alarm Sound
Electrical Current
AC100V~240V 50/60Hz
Power
15W
Sensitivity Test Piece
One Yuan Coin
Transport Package
Cartons
Specification
62KG/unit 0.32CBM/unit
Trademark
PEACENTURY
Origin
China (Mainland)
HS Code
8543709100
Production Capacity
2000PCS/Week

Product Description

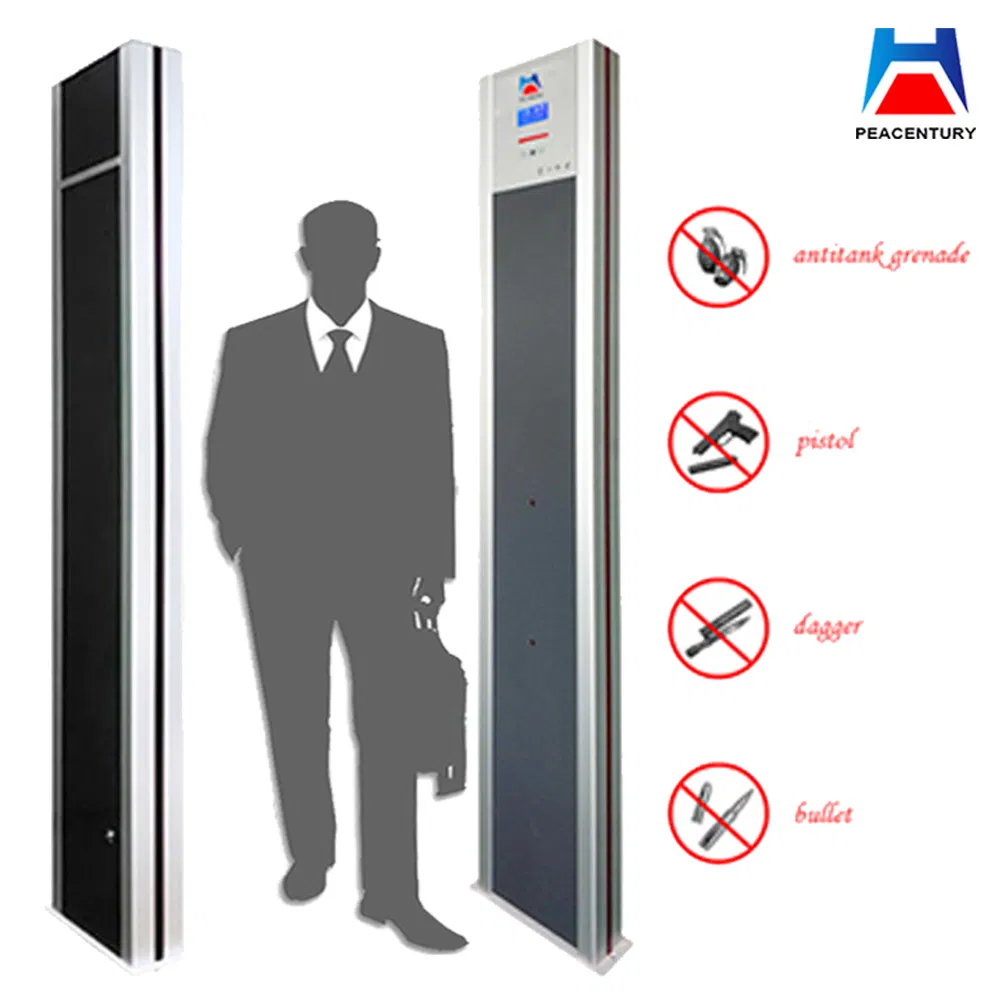

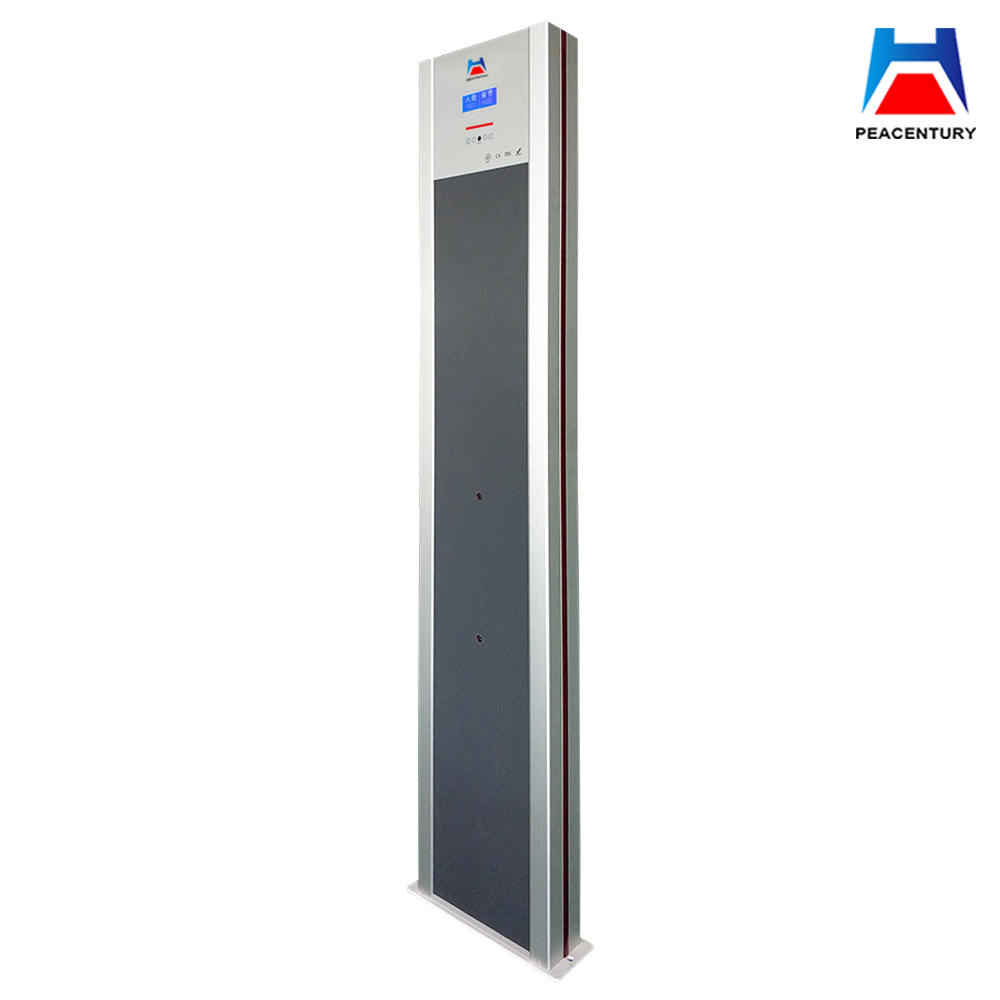

Portable single pole 5 Zones Security Walk-Through Metal Detector

Specifications:
Portable Single Pole 5 Zones Security Walk-Through Metal Detector

Outer frame :

2000mm(H)X400mm(W)X120mm(D)

Weight :

About 35kg

Work environment :

-20- +45ºC

Complied standards

GB15210-94

Power supply:

220V,AC

Power:

<30W

Material of panel:

Import synthetic material,moisture and fire proof

Count detecting

Infrared sensor,mechanical anti-interference

Sensitivity:

Adjustable from 0 to 255

Description:

Product Process: Using imported synthetic material, once suppressed by the special arts and crafts made of moisture, fire.


Infrared technology: through an infrared sensor, mechanical interference ability.


Adjustable area sensibility: Between the self-regulation can be 0-255 sensitivity, according to the user demands the removal of the actual sensitivity and carried by the body jewelry, belt buckle, metal zipper and so on. The maximum sensitivity can detect metal objects the size of the clip.

Alarm Model: Alarm time adjustable: 0-25s, Alarm volume adjustable: 0-255, alarm tone: 1-10.


Statistical functions: Intelligent and Statistics by the number of personnel and alarm times.


Easy to operate: Operation panel for the thin-film panel, high-brightness display panel can directly display alarm area, precise location of the instructions have been exploratory items, and have sound and light alarm simultaneously.


Password protection: Set authorization, password manager, allowing only authorized personnel to operate, which can effectively prevent others to modify the parameters.


Harmless to human body: On the human body, the heart pacemakers, pregnant women, magnetic floppy disks, tapes, video tapes and other sound.


Easy installation: XLD Series metal detector gate is a combination of design, easy installation and removal, operating instructions easier to understand.

Applications:

Hotel, railway/bus/subway station, stadium, exhibition hall, etc


1. Experienced: Exporting to 40 countries around the world, including 150 clients which from UK, France, Italy, Russia, Ukraine, USA, Canada, Brazil, Saudi Arabia, UAE, Korea, Japan, Georgia, etc
2. Skilled: With core technology and independent research and development capabilities in order to create cost-effective quality security products
3. Professional: We are able to provide a comprehensive security product solution for the customer (One-Stop Service), including international training, overseas installation service, ODM & OEM is available
4. Reliable: Our responsible team never evade any quality complaint, but would always try our best to solve problems with our customers.
5. Cost-effective: We seek for reasonable profits only and are willing to develop together with customers.
