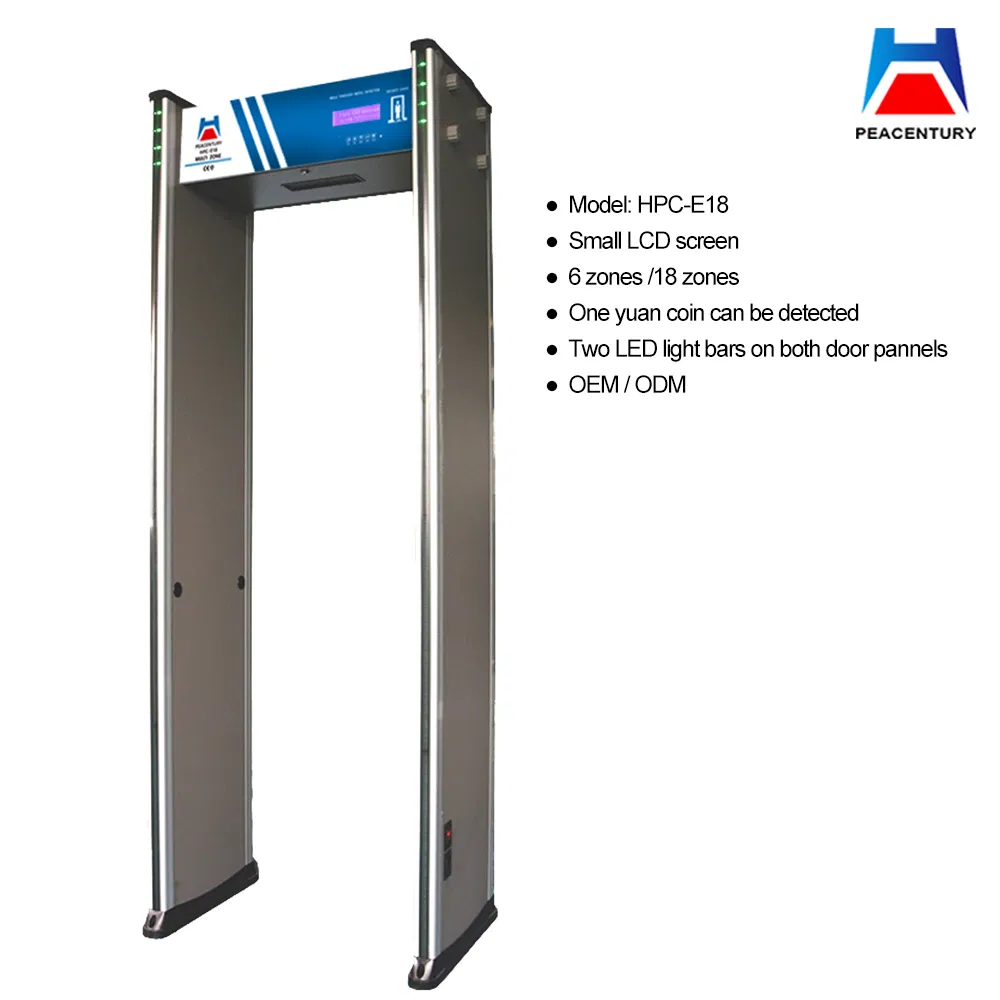

Walk Through Metal Detector Model: HPC-E18

Public Security Safety Check Door Frame Metal Detector Systems 18zones PEACENTURY

The advantages of Passengers security check equipment are as below:
1.Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
2. Small LCD screen, English operating software, easy to operate.
3. Sensitivity adjustable: Each zone has 256 sensitivity level
4. Sound & LED alarm: Both Side LED indicator .
5.easily show where the metal is.
6. Automatically count passengers and alarm times

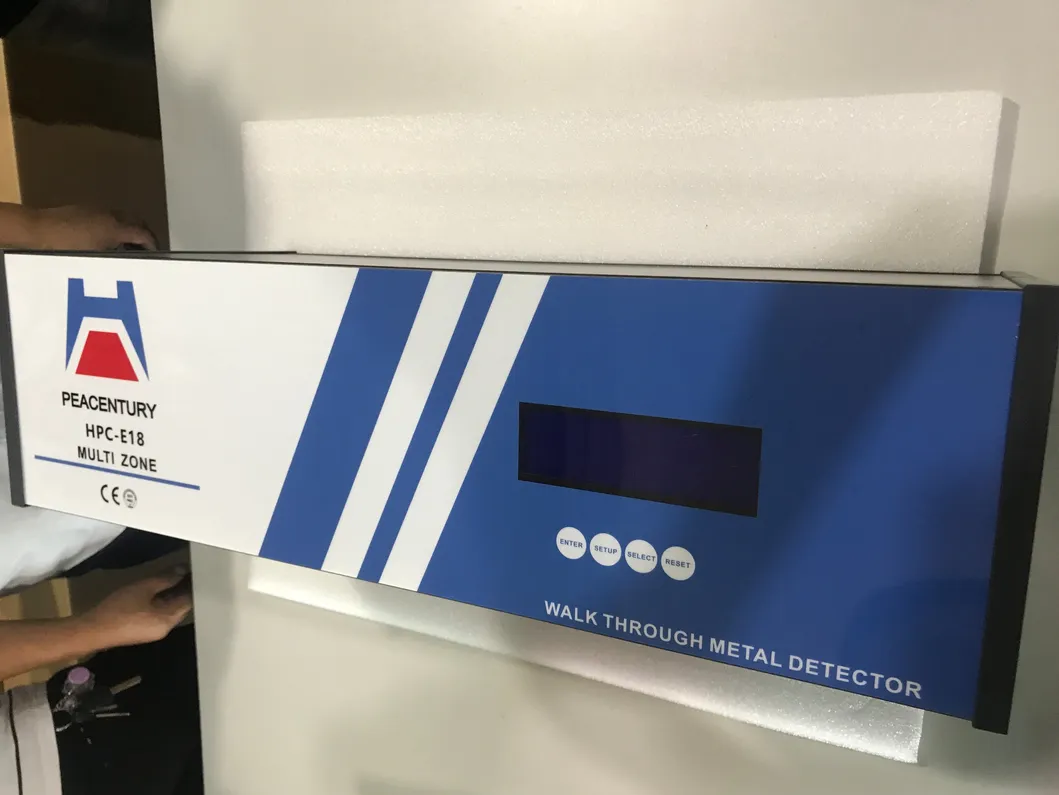

7. Alarm strength indicator on control panel
8. Password protection, only the authorized person can operate.
9. Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
10. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
11. Using high density fireproof material
12. Program Self-diagnostic when power on,no need initial or periodic calibration.
13. Modularization design,easy for maintenance and replacement.
14.Sensitivity Test piece: One yuan Coin, omnidirectional detection.
15. 4-8 hours backup battery (Option)

Machine Parts
Power Supply:AC85V-264V
Working temperature:-20ºC--+50ºC
Working Frequency :4KHZ-8KHZ

Main Features
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

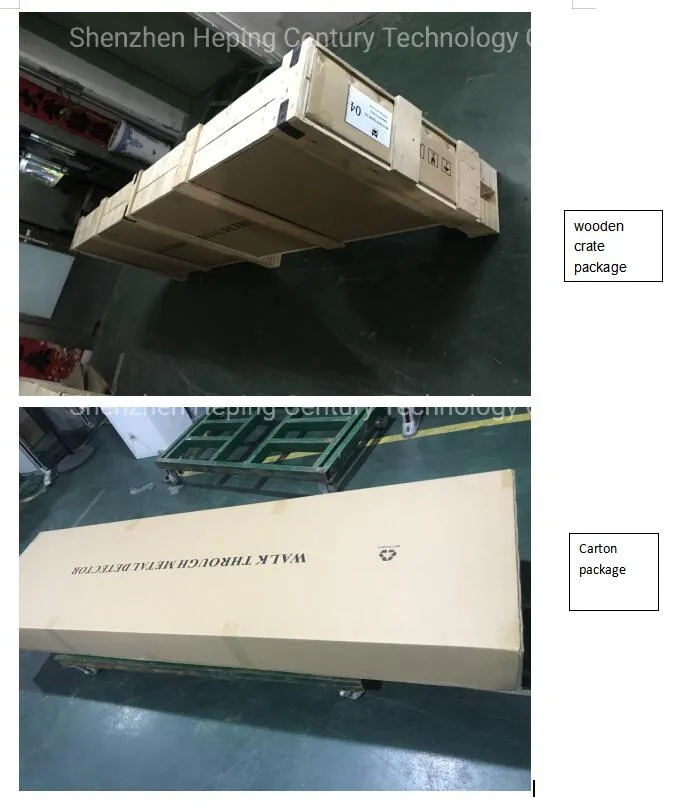

Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn
Gross weight:65KG

Application
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc.

Certificates

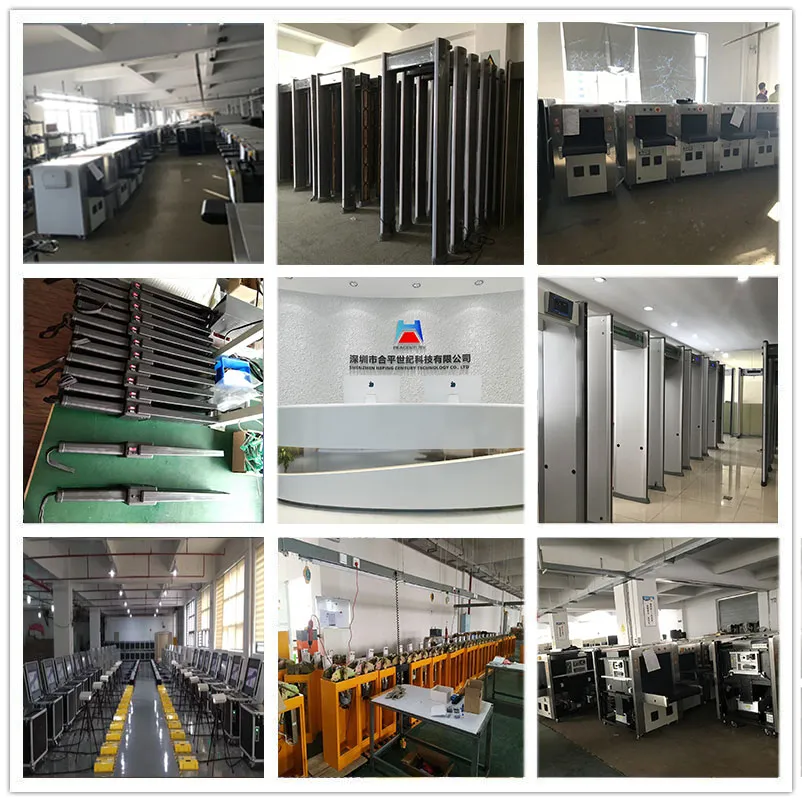

Our Workshop
