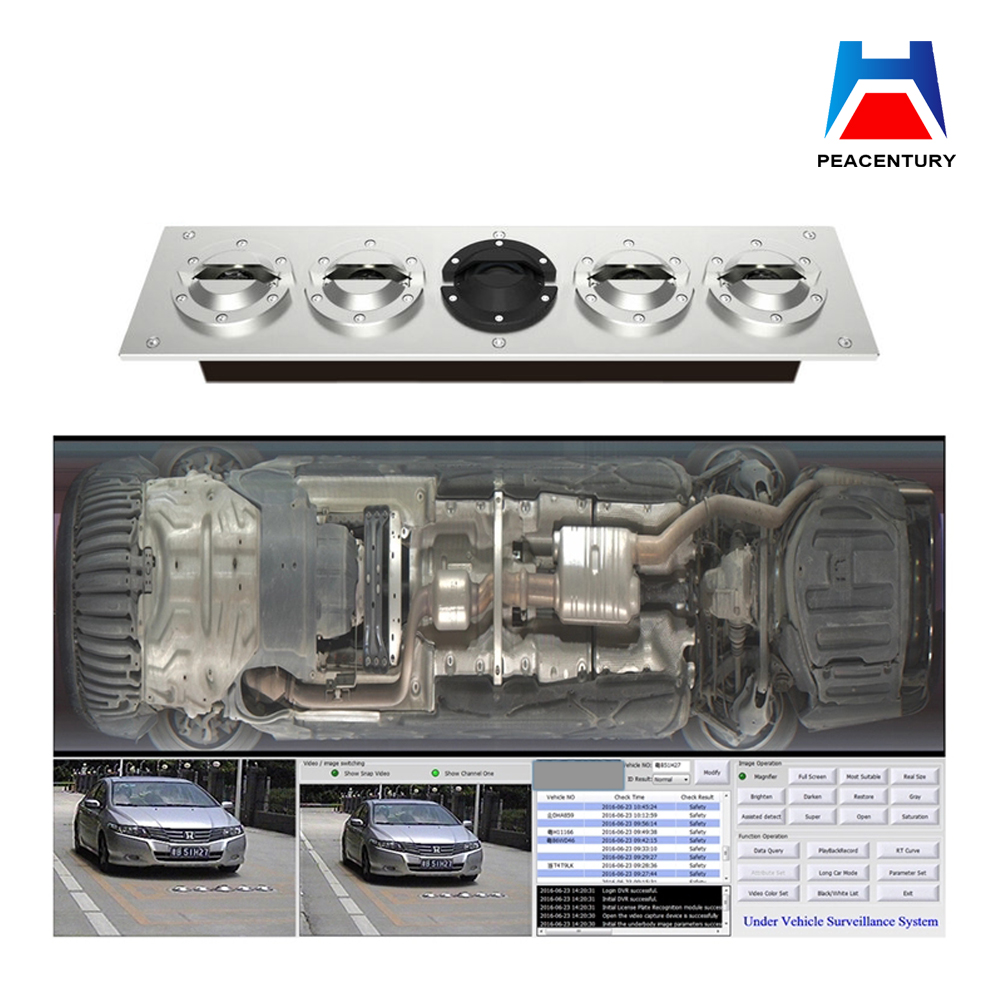

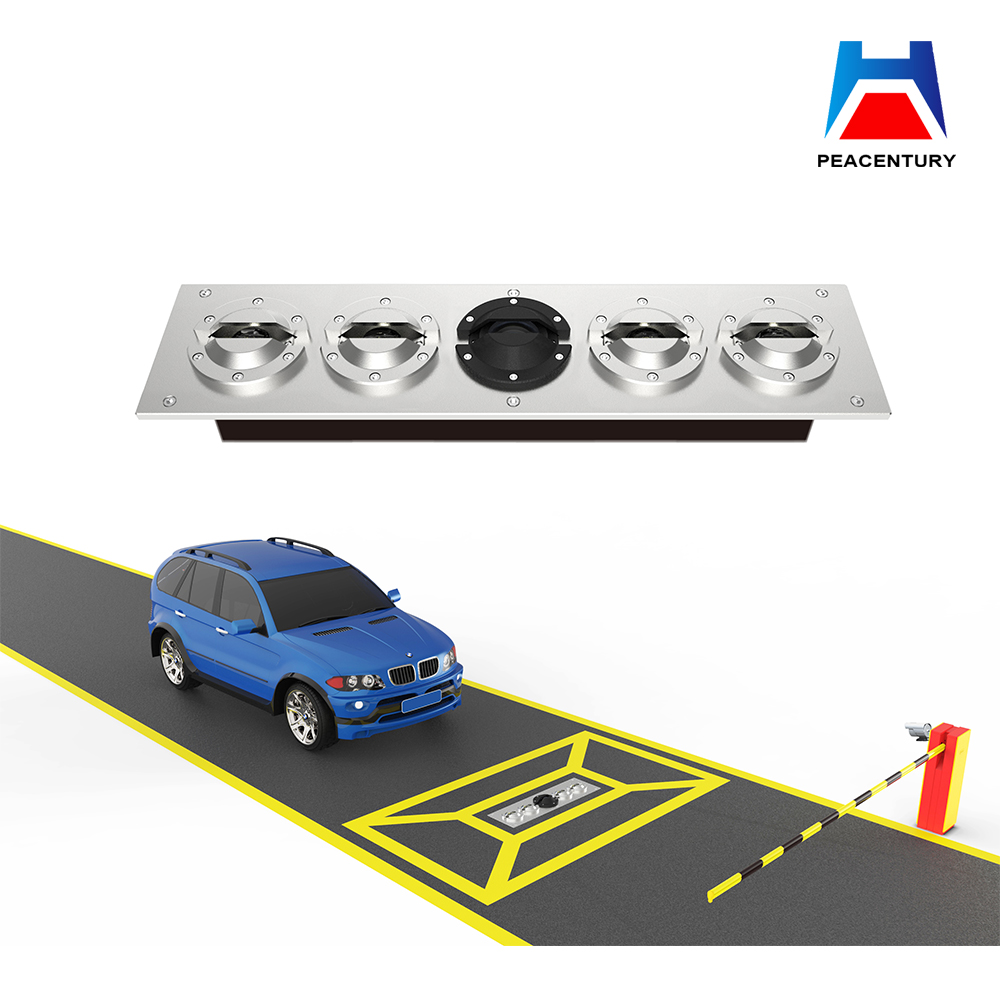

Fixed type Under Vehicle Inspection System
Basic Info.
Product Description

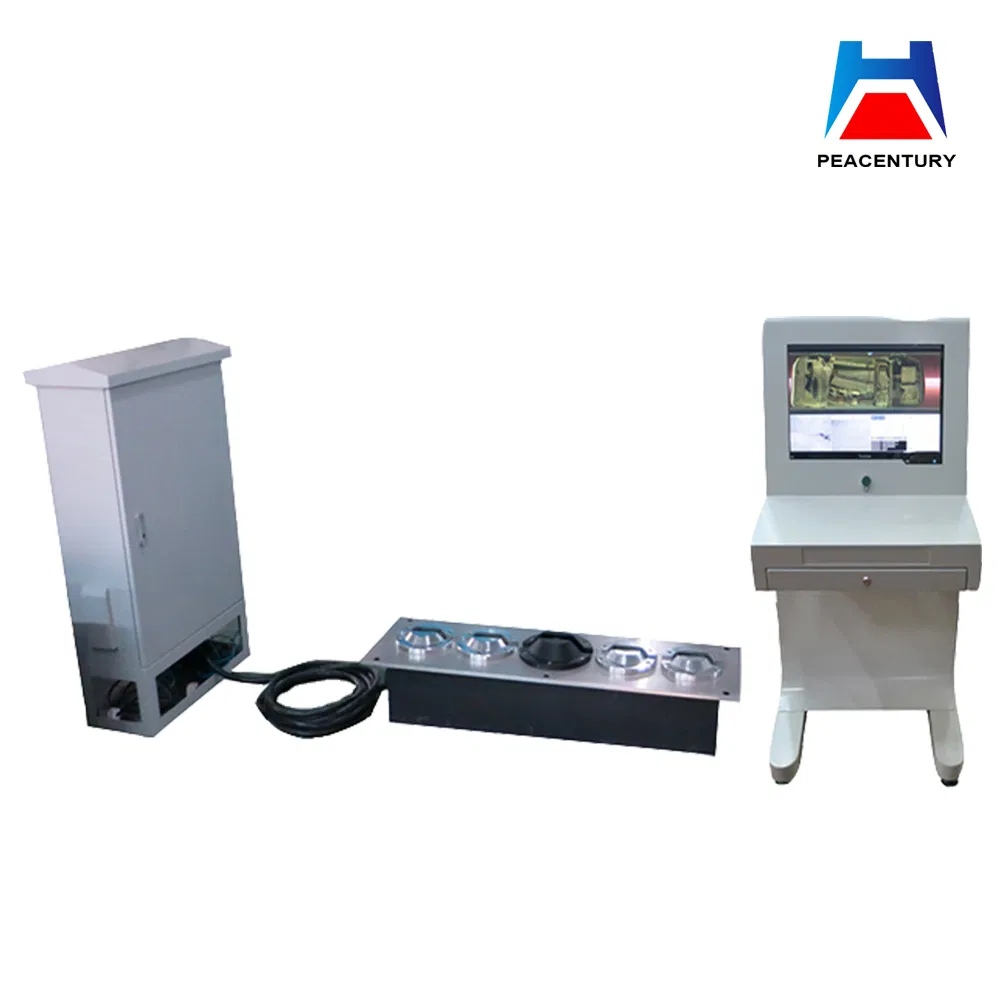

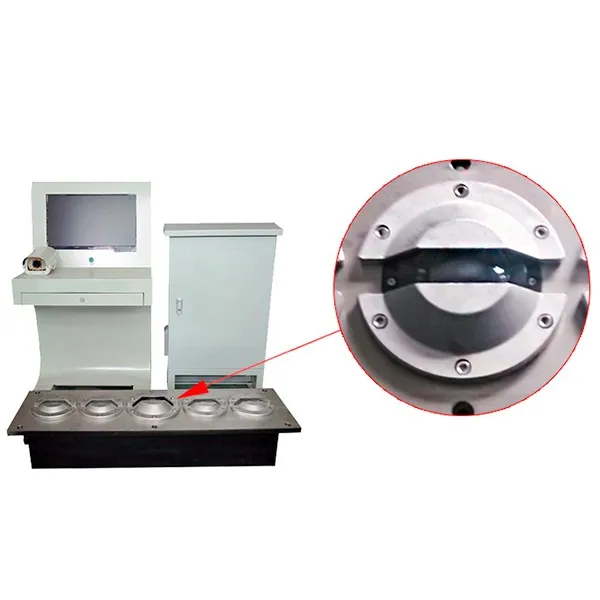

Professional Under Vehicle Surveillance Scanning Inspection System
Product Name | Fix Under Vehicle Inspection System |
Use ambient temperature | -20 degrees-+60 degrees |
Scanner weight | 105kg |
Scanning device volume | 1100 × 280 × 180mm |
Operating Voltage | DC24V |
System power | AC110-240V / 50-60Hz |
Chassis storage or loading time | < 1 second |
Imaging method | Dynamic method of linear CCD scanning technology |
scanning method | Linear scan, ground sense coil trigger |
Scanner data cable | 10 meters as standard; (customizable length) |
Undercarriage image scanner | Open wide field of view image acquisition technology |
Lighting components | Four single sealed LED surface light sources; |
Car bottom image display method | Large format horizontal display |
Vehicle bottom image vertical resolution | ≥2048 pixels CCD |
Product Description:

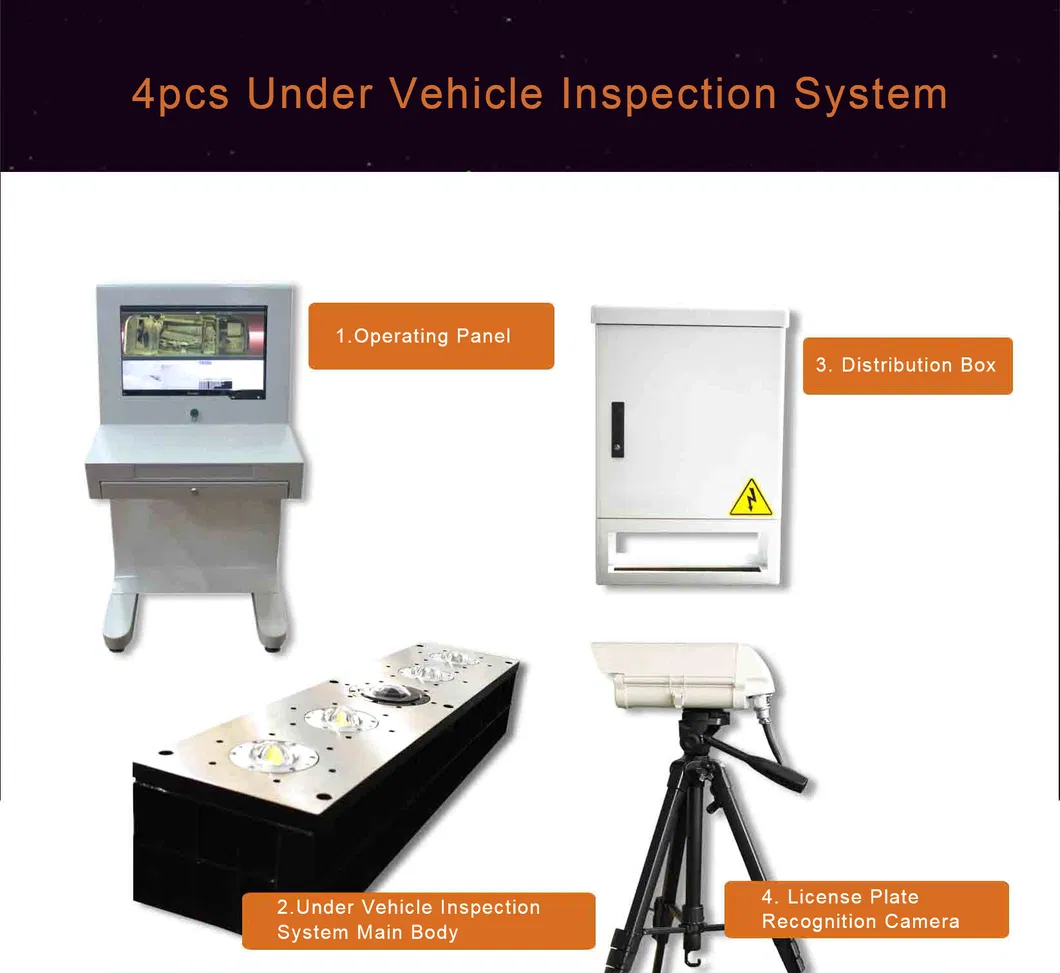

Under Vehicle Surveillance System and UVSS -Model:
Access security control for vehicles at important location: Airports, government buildings, prisons, bank depot,seaports, office, customs, border control, car park entrance checkpoint to important building's Toll station checkpoints, Checkpoints for entering and exiting vehicles attending conferences.

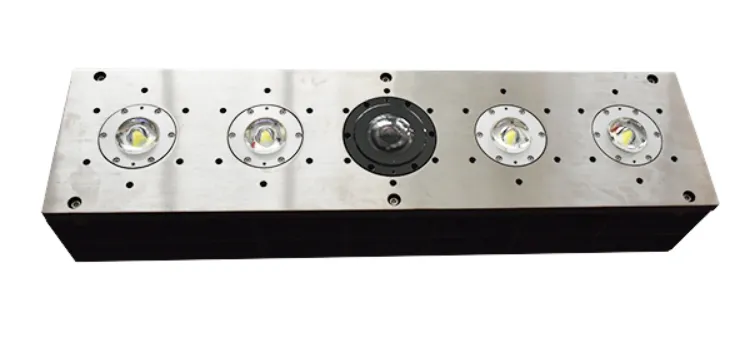

Embedded Frame :
Material : Stainless Steel
Dimension : 1200mm x 350mm
Water-proof grade : IP68
Load bearing Weight : 50T
Image resolution :12000 *6144
CCD Line Scan Camera :
Type : B/W image
Resolution : 5000* 2048 pixels,
Camera view : > 170°
Pixels size : 14μm*14μm
Image : Black/white (color optional)
Power Supply : 24VDC, 3A
Transfer interface : Gigabit Ethernet/100m
Operating Temperature : -25 ºC to +60 ºC
Store or load time : <1 second
Vehicle Image scaling : 16 times
Vehicle image storage format : BMP or JPEG
Vehicle speed : 1-60km/h
Suggest speed : less than 30km/h

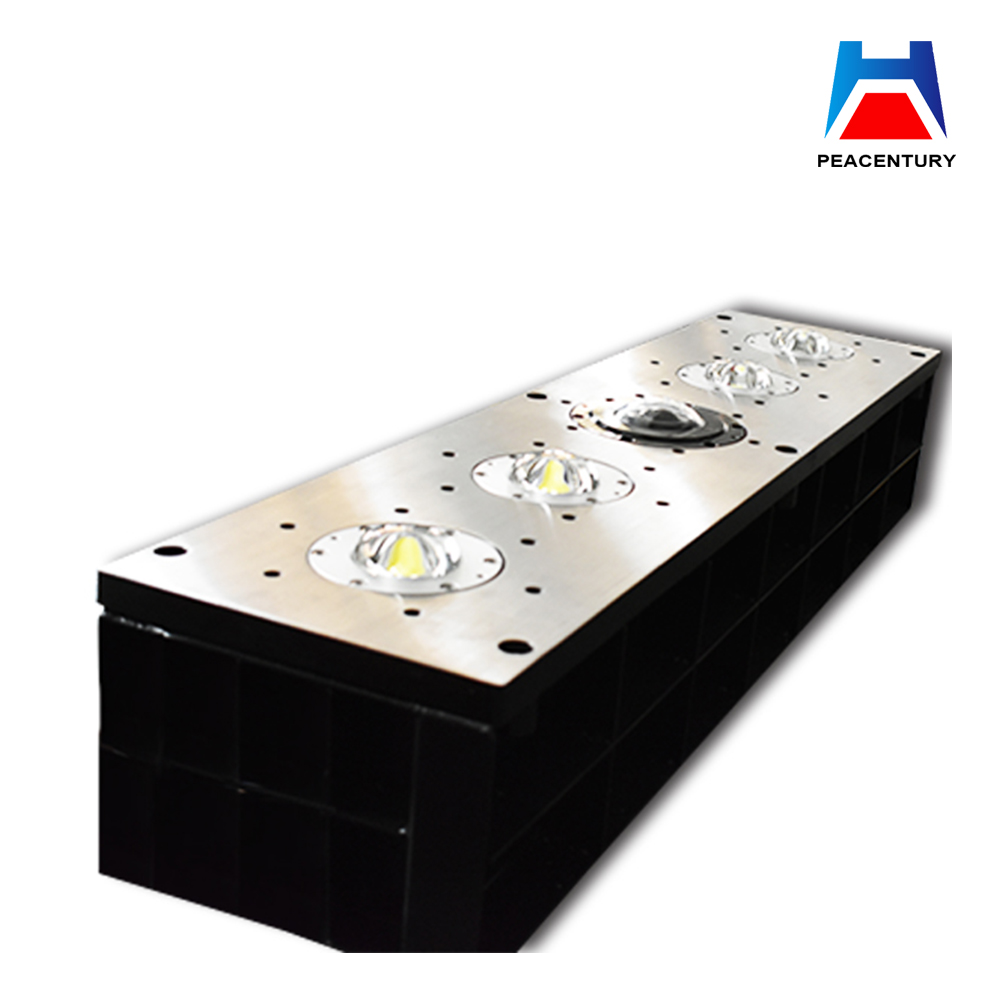

LED Illumination:
Power Supply : 24VDC, 320W
LED light service life : 50,000 hours
Distribution box :
Input : 2 channels induction coil
Output : 1 Channel switch type 12VDC
Communication port : RS485, 1000M Ethernet (Optional)
Computer :
Brand Grantech (SYM76941 VGGA)
CPU Intel (R) Core Processor, 2.6GHz/2.59GHz
Memory 2G (optional 4G)
Graphics 512M
Hard Disk SATA2 Hard Disk 500G Dual LAN (at least one Intel Gigabit)
USB 2.0 (Up to 2 pieces)
Monitor 22" LCD, resolution up to 1920*1080
Scene Video Record 4 channels, Compression algorithm of scene video: H264 (optional)
Operational system Windows XP or Windows 7 (32 bit) (optional)

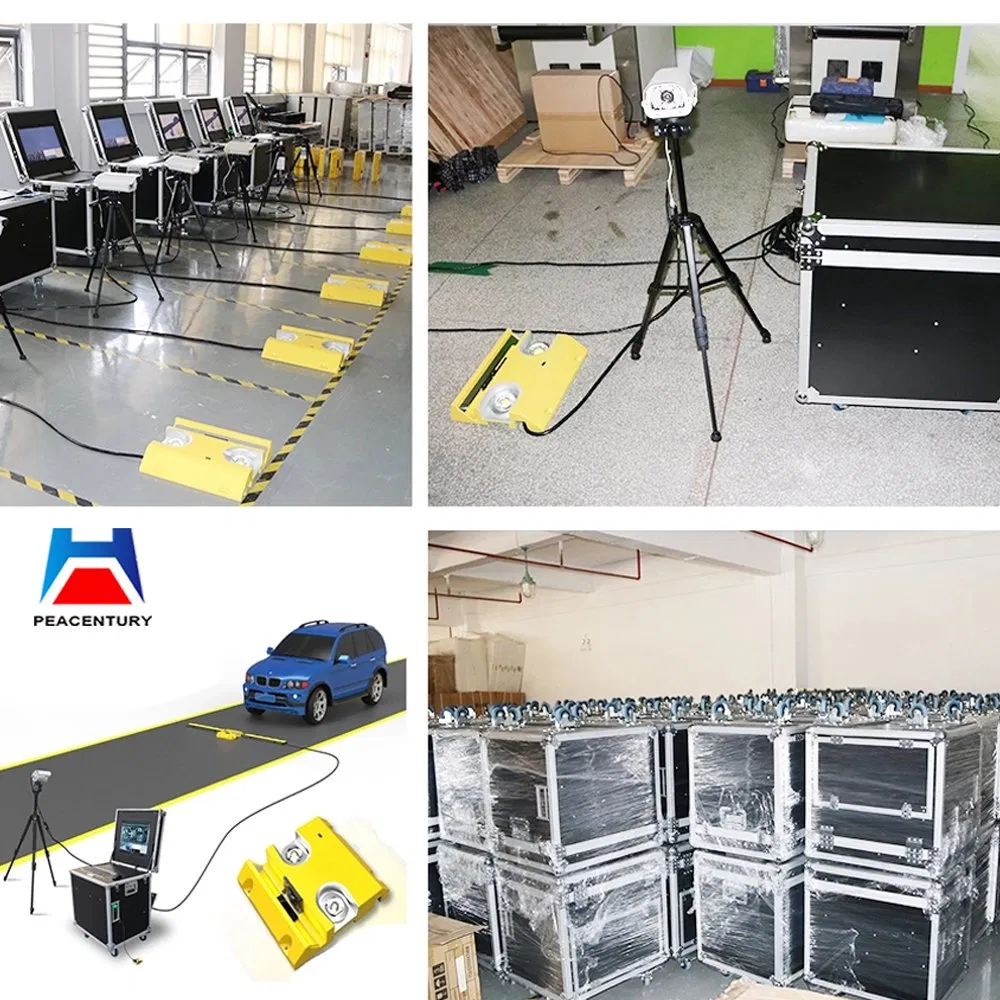

Popular mobile under vehicle alarming system is also hot sale, More detail, welcome send me inquiry.

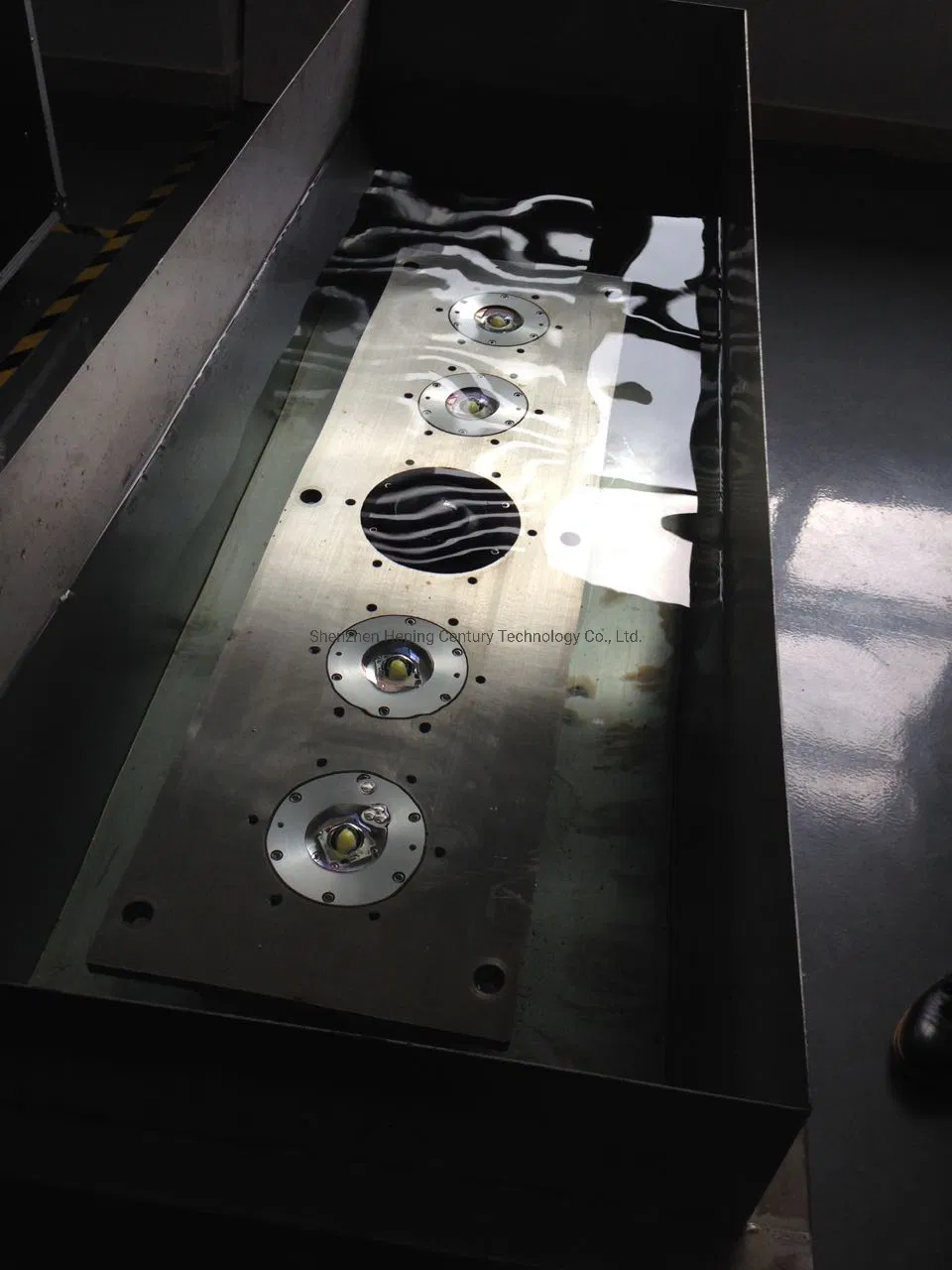

Under Vehicle Inspection System waterproof testing:
