HPC-5636

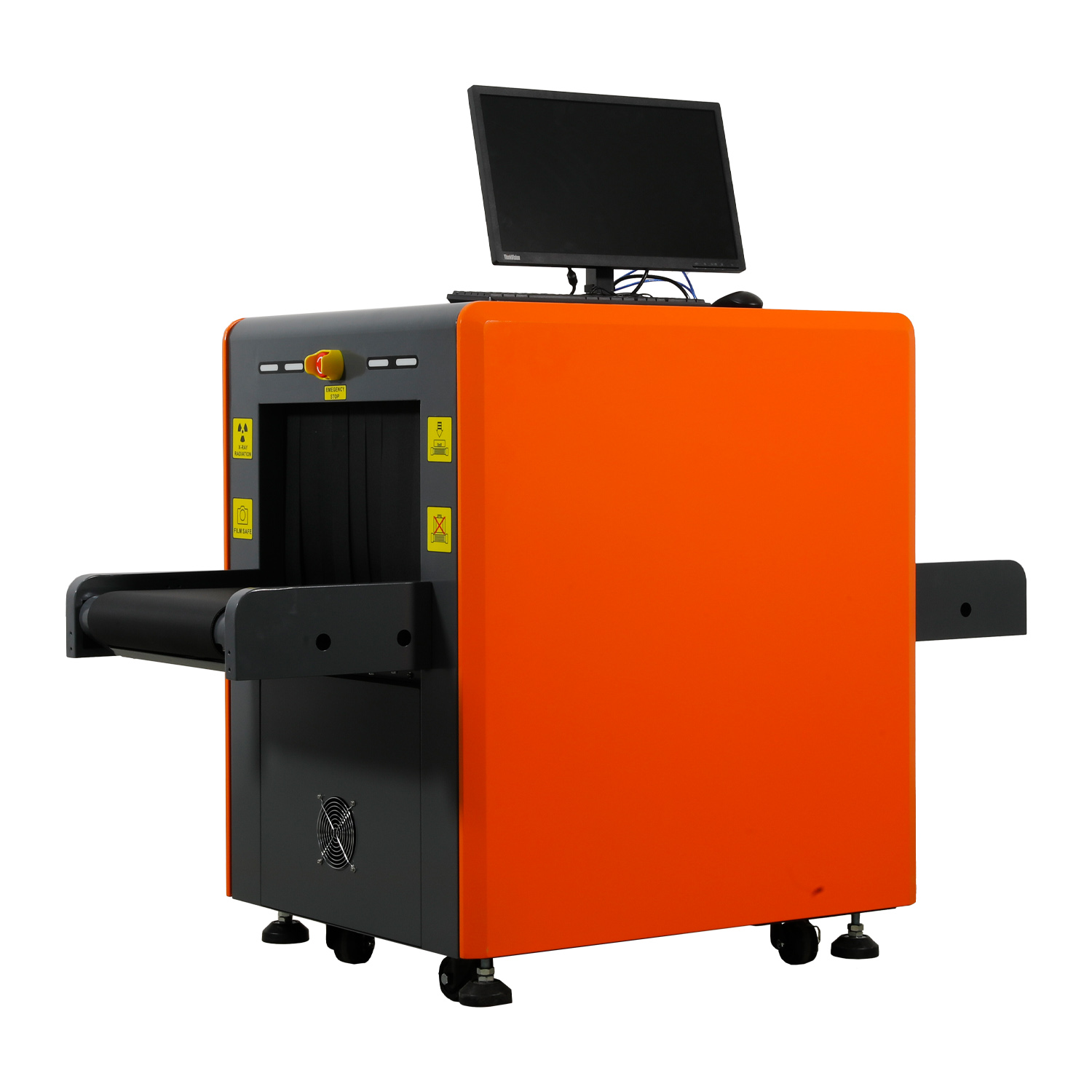

X-Ray Luggage Scanner Airport X-Ray Security Machine With High Quality Price 5636
Tunnel Size: 560*360mm



FEATURE
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3,Safety ray:Transmit ray under automatic control, avoids the miss
4,Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor 5,position willfully according to own need, reduces wearily
6,Simple operation by mouse:Without keyboard and work table, control by mouse, save space
7,Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment 8,automatic security close-down, does not need complex many steps, is simpler
9.Eagle-eye:Could be expediently observing enlargement area
10,Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA
Tunnel Size: 560(W)×360(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Single inspection dosage < 1.32µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 38MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H
X-RAY GENERATOR
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods Sealed oil bath with forced air/100%
