HPC-8065A

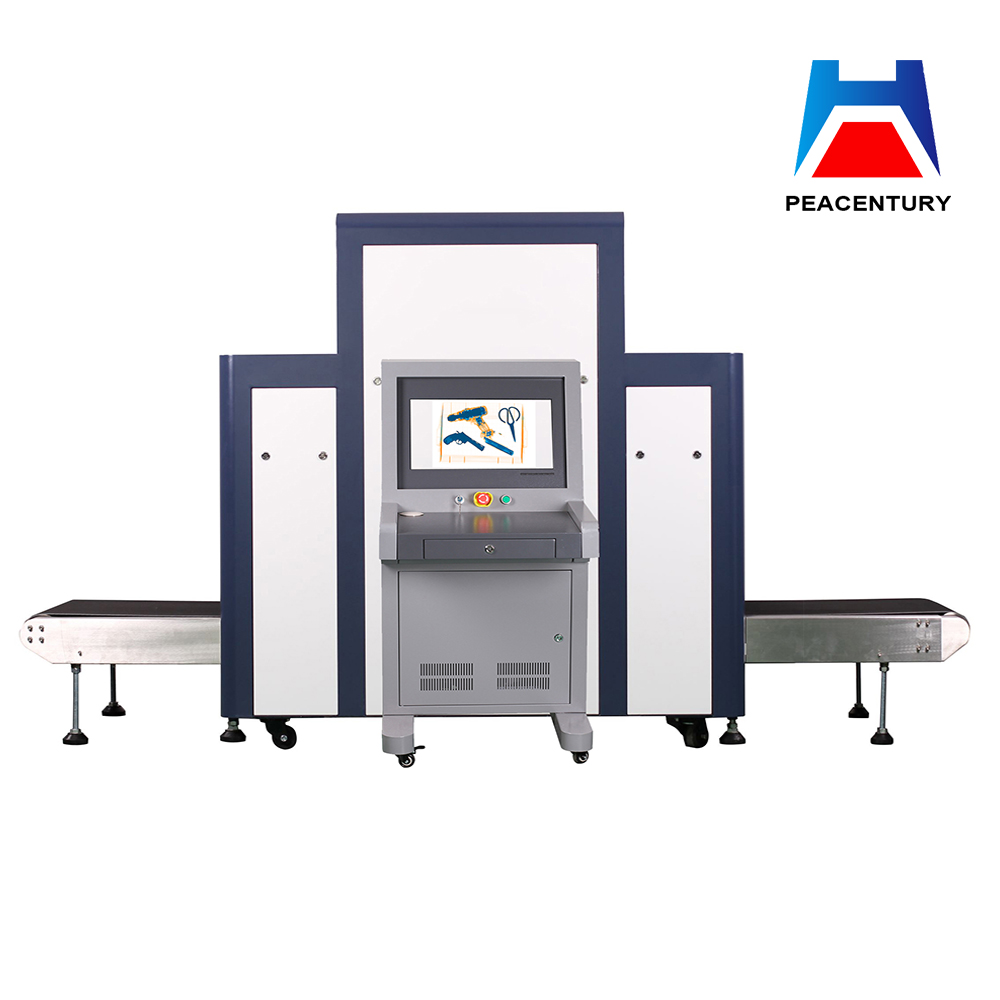

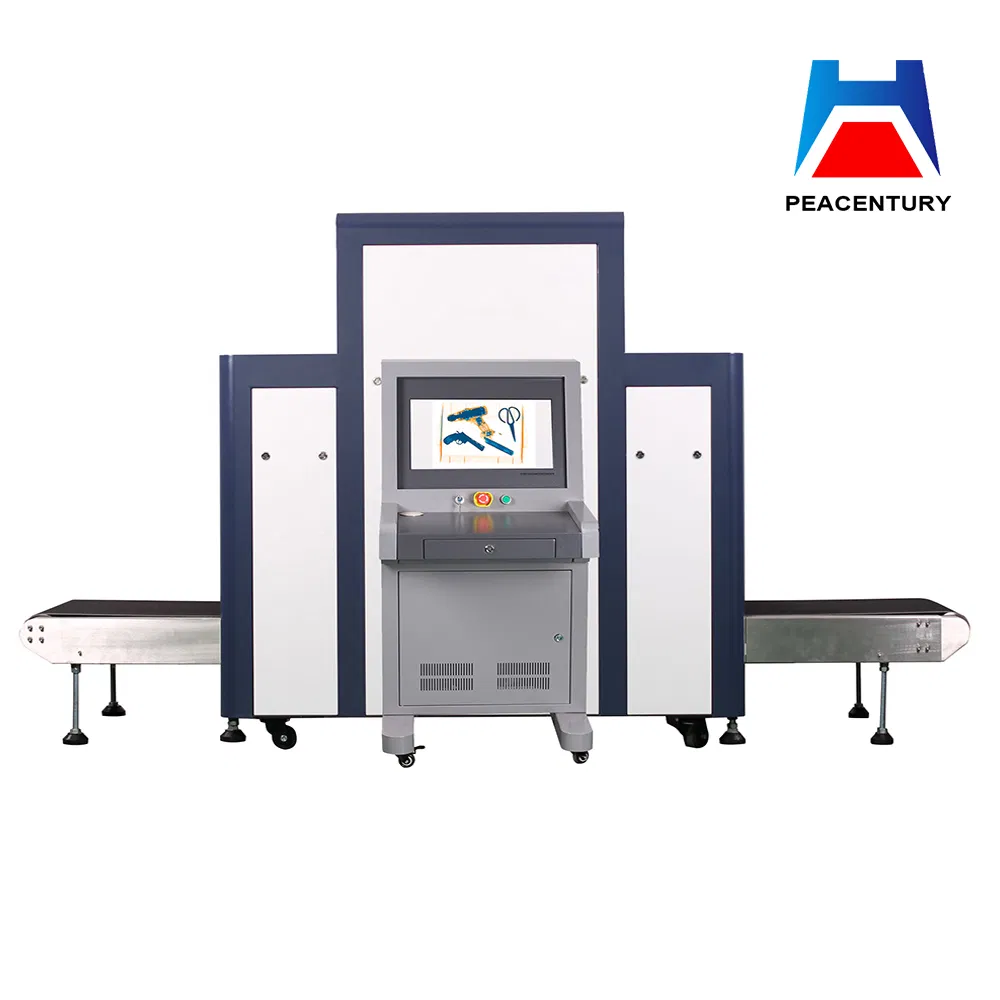

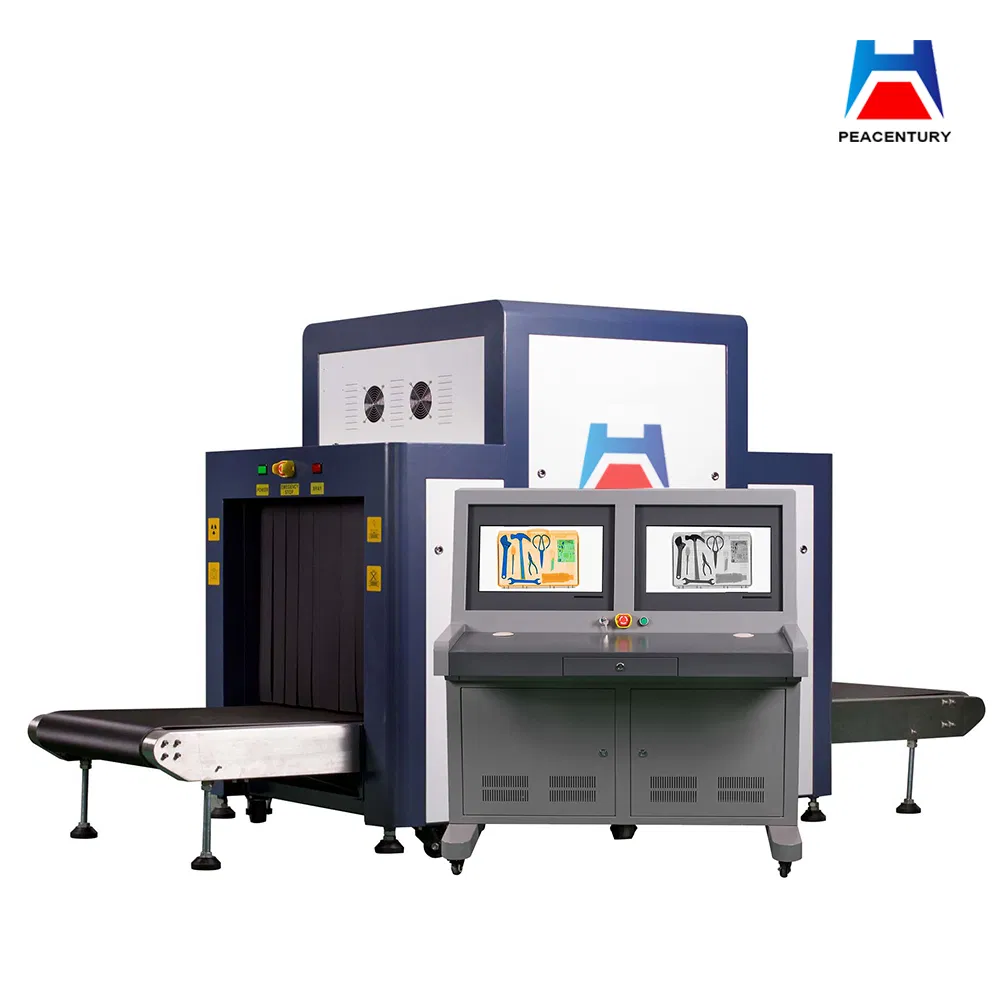

Hotel XRay Baggage Scanner,X-Ray Baggage Screening Scanner,Airport Parcel Security Scanner HPC-8065 Multi   Energy


1..............................Tunnel Size : 800 (W) ×650 (H) mm
2.............................12 bit , Dual Energy
3..............................38mm Steel Penetration
4..............................Leakage radiation: <0.14µGy/h
5..............................Single inspection dosage: < 1.15μGy
X-Ray Generator Specifications:
Computer Specification:
Image Display:
20''*2 High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software
TIP and training software , free programmable keys , real time diagnostic
Display date/time , baggage counter , User ID number
Review feature , recall previously image , zoom overview , step less zoom
