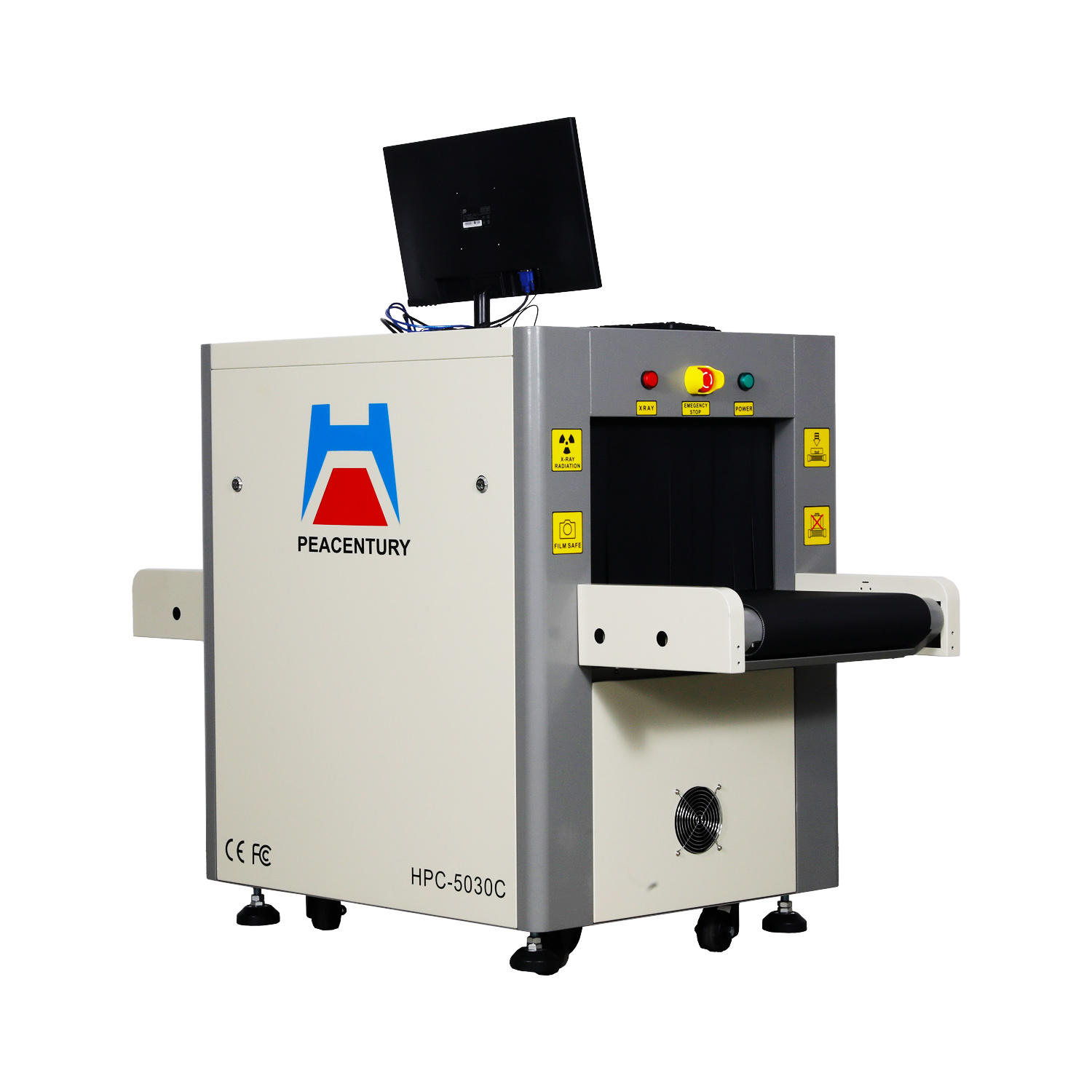

HPC-5030A/HPC-5030C
Basic Info.
Product Description
X ray baggage screening scanner machine to prevent dangerous objects of x ray detector 50*30cm
Introducing the New Security X-ray Machine X Ray Luggage Hold Baggage Scanner for hotels, brought to you by Shenzhen Heping Century Technology Co., Ltd. This non-portable scanner is an essential security system that ensures the safety of your guests and their belongings. With a 2-year warranty, you can trust in its reliability and performance. Upgrade your hotel's security equipment with this advanced x-ray machine today.
| Tunnel Size : | 500 (W) ×300 (H) mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150kg |
| Single inspection dosage: | <1.01μG |
| Film Safety: | Guarantee ISO1600 Film |
| Leakage radiation: | <0.1µGy/h |
| Steel Penetration: | 36mm |
| Spatial Resolution: | 1.0mm Horizontal and Vertical |
| Wire Resolution: | 40AWG |
| Power Requirement: | 220V AC (±10%) 50±3Hz |
X-RAY GENERATOR:
| Orientation: | Upward |
| Tube Current: | 0.4 to 0.7mA(adjustable) |
| Anode Voltage: | 80KV-140KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: | Sealed oil bath with forced air/100% |
OPERATING ENVIRONMENT:
| Storage Temperature: | -20oC to 60oC |
| Operating Temperature: | 0oC to 45oC |
| Relative Humidity: | 20 to 95% non-condensing |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Power wastage: | 1.0 KW (Max) |
| Noise: | <65DB |
Key Features:
High-resolution 20-inch color LCD display.
Color Quality: Enjoy true-to-life colors with our 24-Bit real color technology, ensuring every detail is vivid and accurate.
Edge Enhancement: Experience sharper and more defined object contours, allowing for easier identification.
Super Image Enhancement: Enhance image details to a whole new level, ensuring even the smallest elements are clear and distinct.
High Penetration Display: Increase the contrast of bright areas in the image, making it easier to see t***gh and identify objects.
Low Penetration Display: Enhance the contrast of dark areas in the image, making it easier to discern hard-to-see objects.
Magnifier: Zoom in on specific areas of interest with our convenient partial magnifying function.
Brightening/Dimming: Adjust the brightness of the image to your preference, ensuring optimal viewing in any lighting condition.
Image Recurrence: Access and process the previous twenty images, allowing for easy comparison and analysis.
Image Restoration: Restore any image to its initial status, ensuring accurate and reliable results.
Image Storage: Real-time store and process any image during operation, providing a seamless and efficient workflow.
With our New Security X-ray Machine X Ray Luggage Hold Baggage Scanner, you can trust that your security needs are in capable hands. This non-portable system is backed by a 2-year warranty, ensuring peace of mind and reliable performance.
1. Large Cargo/Large Parcel Screening
2. Multi-language support
3. Dual-energy material discrimination
4. Assist to detect drug and explosive powder
5. Powerful X-ray source imaging performance and penetration
6. Extended height tunnel with square opening easily accepts outsized parcels, boxes and other freight
7. Ergonomically designed operating console features user-friendly

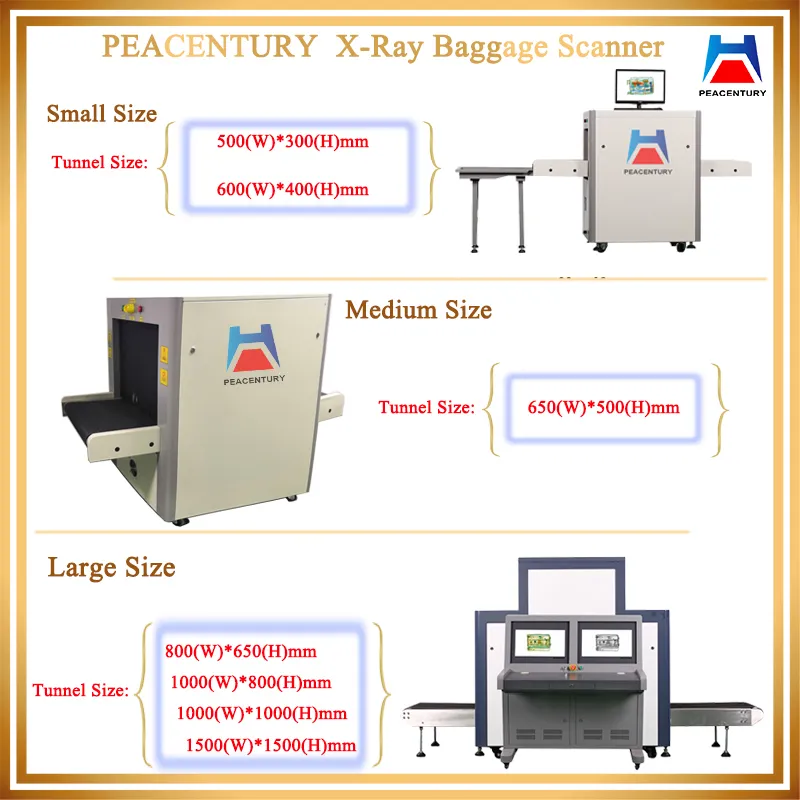

| End user | Recommend X Ray Baggage Scanner model NO. |
| Airports, Transport terminals | HPC-6040; HPC-6550; HPC-10080; HPC-100100 |
| Factories (shoes, bags), | HPC-5030;HPC-5335;HPC-5636; HPC-6040; HP-B6550 |
| Courthouses, Embassies, Buildings | HPC-5030; HPC-5335;HPC-5636; HPC-6040; HPC-6550 |
| installations | HPC-5030; HPC-5335;HPC-6040; HPC-6550; HPC-8065; HPC-100100 |
| Prisons, Hotels, Schools, | HPC-5030; HPC-5335;HPC-5636; HPC-6040; HPC-6550; HPC-10080 |
| Security checkpoints, | HPC-5030;HPC-5335; HPC-6040; HPC-6550; HPC-8065; HPC-10080 |
